Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector
Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

Grote Afbeelding :  Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

Productdetails:
Plaats van herkomst: CHINA
Merknaam: Huatec
Certificering: ISO，CE
Modelnummer: HEF-601
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1Set
Verpakking Details: in kartonnen doos
Levertijd: 5 tot 8 werkdagen na betaling
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 50 sets per maand
Contact

Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

beschrijving
Productnaam: Wervelstroomfoutdetector Sondetype: Brugtype
Frequentie van de stimulatie: 10Hz～12MHz Interfacesteun: A/b type USB -interfaces
Markeren:

Eddy current flaw detector for metal

,

Real-time defect detection equipment

,

Non-destructive testing detector with warranty

Detect Defects in Metal Vertexrial Components in Real Time Eddy Current Flaw Detector

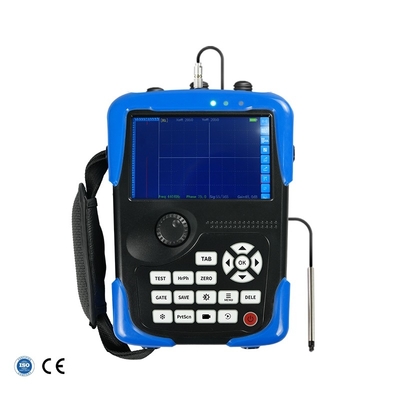

The unique feature of the HUATEC HEF-601 series eddy current testing instrument lies in the use of the most advanced microelectronics digital processing technology, real-time dual frequency eddy current testing technology, and microprocessor technology, which can effectively detect defects in metal Vertexrial components in real time. It adopts the most advanced design concept, with dual position adjustment of buttons and shuttle, which can greatly improve the efficiency of parameter setting.

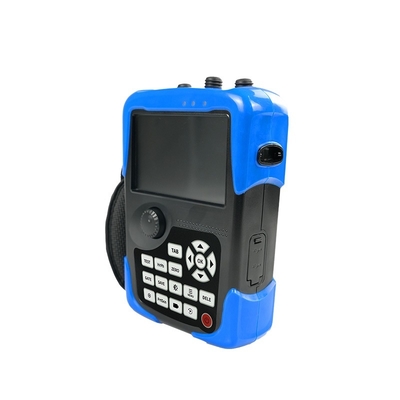

The HUATEC HEF-601 is compact, easy to operate, and has an IP65 waterproof rating. It is waterproof, dustproof, and drop resistant, and can adapt to very harsh working environments.


Main Function
★ Unique dual adjustment mode of buttons and shuttle knob, simple, convenient and easy to use
★ Three probe modes (single ended, bridge, coupled) to choose from
★ 10k-10M ultra wide excitation frequency range
★ In addition to the conventional adjustable excitation frequency, the high-end and low-end frequencies are also adjustable to meet the requirements of special Vertexrial flaw detection
★ In addition to the conventional adjustable gain, both high amplifier gain and low amplifier gain can be adjusted in segments
★ X. Y-axis bidirectional gain compensation or suppression (can be performed independently)
★ The gate has a unique intelligent gate mode (automatically ignoring non defect signals) in addition to the conventional circular, rectangular, and straight lines
★ Impedance plane diagram and time base scanning diagram display
★ Storing data and videos can be directly connected to a computer for export without the need for software installation, making it easy to use
★ High definition, high sensitivity
★ Easy to operate, English operating interface
★ Multiple filtering methods
★ Data transmission adopts USB communication interface
★ Built in lithium battery, capable of continuous operation for more than 8 hours
★ Ip65 waterproof rating. Anti fall and shockproof, suitable for harsh working environments


ModelHEF-601HEF-801HEF-801A
probe TypeBridge typeSingle ended, bridge typeSingle ended, bridge type, coupled
Incentive frequency10Hz～12MHz10Hz～20MHz
Excitation voltage0-10v continuously adjustable, with a step size of 0.10-12v continuously adjustable, with a step size of 0.1
High gain amplifier0-50, step 1 continuously adjustable0-100, step 1 continuously adjustable
driveLevel 4Level 8Level 8
Microprocessors32-bit (dual core)32-bit (dual core)64 bit (dual core)
Pre stored detection parameters10000 pieces100000 pieces1 million pieces
★Memory8GB (non expandable)8GB (non expandable)64G (expandable up to 1TB)
★Waterproof gradeNoIP54IP65
★Low gain amplifier0-250, step 1 continuously adjustable
★Low end frequency0-120, step 1 continuously adjustable
★High end frequency0-120, step 1 continuously adjustable
★Grid grayscale10 levels adjustable
X-axis gain-100～100
Y-axis gain-100～100
High pass filtering0～500Hz
Low pass filtering10Hz～10KHz
digital filtering1～100
★ Filter typeHR filtering and smoothing filtering are optional
★Pre amplificationChoose from 1x, 2x, 5x, 10x
★Refresh timeLevels 1-10 are optional, step 1
★Bandwidth limitationHigh, medium, and low adjustable
★Amplitude and phase measurementOne click automatic phase adjustment/or manual adjustment
★Zero adjustmentOne click adjustment of zero position
frozenCan pause image detection at any time for better analysis
phase0-360 degrees
★Gate typeCircular, rectangular, straight, intelligent (automatically ignores non defect signals)
Gate alarmSound alarm
Balance methodDigital electronic balance
★Screen display modeNormal and strong light modes (suitable for working under strong sunlight)
★Data recording and management

The instrument can store images and videos,
And it can directly connect to a computer to export pictures and videos without the need to install software on the computer.

Other performance indicators
★Interface supportThere are two A/B type USB interfaces in total
★Display screen5.0 "high brightness TFT color LCD screen, 800 * 480 pixels
Working temperature range-10～+50℃
★Size and weight

135 (length) x 54 (width) x 205mm (height);
The total weight of the machine plus the battery should not exceed 1kg (approxiVertexly 0.95kg)

External power supplyAC:100-240V DC:15V3.8A
