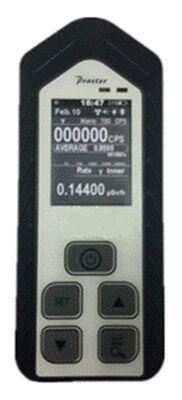

FJ-1108 X Beta Gamma IP67 Protection level Spectrum Analysis Radiation Warning Monitor

FJ-1108 X Beta Gamma IP67 Protection level Spectrum Analysis Radiation Warning Monitor

FJ-1108 type multifunctional dosimeter, radiation warning, personal dose monitoring and spectrum analysis function, you can add a variety of professional radiation measurement probe, and can cooperate with PC online analysis software for professional analysis.

Mainly used for occasions with higher requirements on radiation monitoring, such as environmental monitoring (nuclear safety), radiation health monitoring (CDC, nuclear medicine), monitoring of Homeland Security (Immigration and customs), public safety monitoring (Public Security), nuclear power plants, laboratories and nuclear technology application etc.

Hardware configuration (host model):

Matching configuration:

General technical index:

Data storage: the dose rate was 100 thousand; the whole spectrum was 500 groups;

Protection level: IP67

Battery life: > 24 hours

Alarm time: 2 seconds

Size: 168mm * 70mm * 32mm

Weight: 260g

The relative error is less than 10%.

Temperature range: -40 DEG C, ~+55 DEG C

Temperature dependence: less than 20%

Humidity range: 0~98%

Host detector indicator:

Detector type: GM tube

Size: Phi 5 * 12mm

Dose rate range: 0.01 Sv/h~30mSv/h

Range of energy: 20keV~1.5MeV

Types of radiation detected: X, beta, gamma

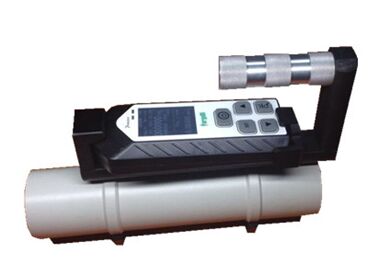

1108 probe index:

Detector type: energy compensation GM counter

Dose rate range: 0.01 Sv/h~10Sv/h

Range of energy: 40keV~3.0MeV

Protection level: IP68
