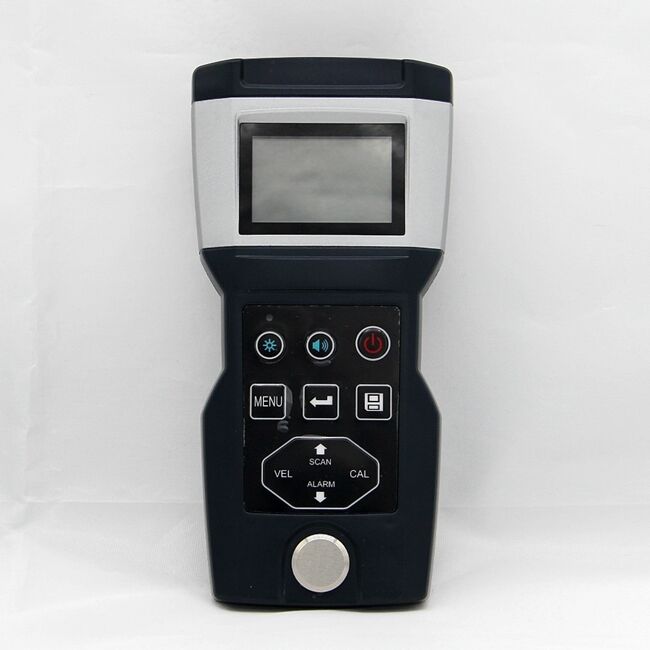

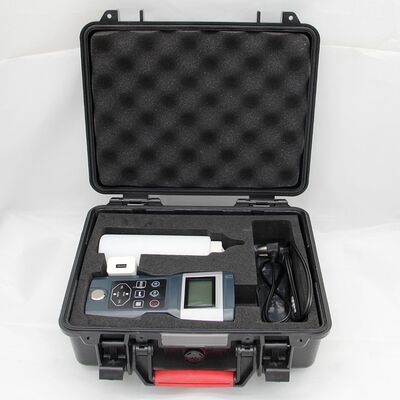

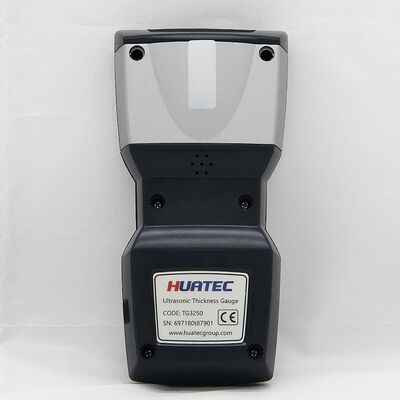

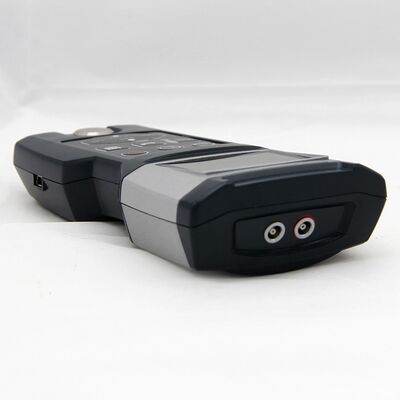

TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge

TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge
TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge

Grote Afbeelding :  TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge

Productdetails:
Plaats van herkomst: China
Merknaam: HUATEC
Certificering: ISO，CE
Modelnummer: TG-3250
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1SET
Verpakking Details: in karton
Levertijd: 3 ~ 7 dagen na betaling
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 100 setjes per maand
Contact

TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge

beschrijving
Productnaam: Doorlaag Ultrasone diktemeter Nauwkeurigheid: 0,001 millimeter of 0,0001 inch
Metaal: staal, gietijzer, aluminium, koper Meetmodi: Puls-echo, echo-echo, interface-echo
Markeren:

digital thru coating thickness gauge

,

high precision ultrasonic thickness meter

,

non destructive testing equipment with warranty

High Precision Digital Thru Coating Ultrasonic Thickness Gauge



TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.



Technical Parameters





Measure Range 0.75~400 mm (Steel) Sound Velocity Range 1 ~ 19999 m/s
Resolution 0.001mm / 0.0001inches Accuracy 0.03mm or 0.3%*H
Measuring Period 4 times per second Probe Frequency 2MHz,3MHz,5MHz,7.5MHz
Calibration Mode Probe Calibration & Two Point Calibration Calibration block 4.000mm(Steel)
Measurement Mode P-E, I-E, E-E Gain Adjustable 16 Stages
Measuring Mode Single point, scan, min/max capture, differential, alarm Data Storage 1000 measurements, including thickness, sound velocity, time, etc.
Display English / Chinese selectable,
FSTN LCD Display with backlight		 Display Content Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc.
Communication Bluetooth & Mini-USB interface, virtual serial port protocol Print Optional portable Bluetooth thermal printers
Power Supply 3.7V Li-Ion chargeable battery Power off Timeout power off, low battery power off
Usage Temperature -10 ~ 50 °C Storage Temperature -30 ~ 60 °C
Size 157mm*78mm*37mm Weight About 260g
Shell Material ABS & PC alloy Box Material ABS (IK08 / IP67)


Features:

  • High precision timing chip & V-Path model used for precision measurement
  • Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
  • Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
  • Bluetooth & Mini-USB interface for printing & communication, host software upgradable
  • Can work with dual element probe and also single element probes.
  • This instrument can be used for all kinds of plates and various machining parts for accurate measurement, suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, fiberglass and any other ultrasonic thickness of the good conductor, can be widely used in petroleum, chemical, metallurgy, manufacturing, ship, aviation, aerospace and other fields.



Main Functions:

  • Support Pulse-Echo(P-E), Echo-Echo (E-E), Interface-Echo (I-E) measurement modes
  • 16 types gain optional, gain adjustable, 7 types of transmission frequency
  • Scan mode, min/max capture mode, differential mode & alarm mode support
  • Sound velocity calibration by known thickness
  • Storage capacity of 1000 measurements with thickness, velocity, time, etc.
  • Communicate with PC or smart phones, support online measurement & command control (OC version)



Probe Parameters

The technical indicators (the measurement range is related to the properties of the material to be measured, coupling status and other influencing factors, and the measurement range of 45# steel is shown in the table)



Pro

Label S15-P06 S2M-P14 G5M-P10 G5M-P08 G7M-P06 G2M-P12 H3M-P12
Type Single Single Dual Dual Dual Dual Dual
Measure Range 0.15~28 mm 30~2000 mm 0.8~300 mm 0.8~225 mm 0.8~50 mm 3.0~700 mm 2.0~200 mm
Measure H<10 0.01mm 　 0.03mm 0.03mm 0.03mm 0.05mm 0.05mm
Error H≥10 0.3%H 0.5%H 0.3%H 0.3%H 0.3%H 0.5%H 0.5%H
Probe Outer diameter 8mm 19mm 13mm 11mm 9mm 17mm 15mm
Probe Frequency 15MHz 2MHz 5MHz 5MHz 7.5MHz 2MHz 3MHz
Contact Temperature -10~60°C -10~310°C -10~60°C -10~60°C -10~60°C -10~60°C -10°~310°C
Using range High precision measurement or measurement of ultra-thin work piece No delay, measuring ultra-thick work piece Measurement of conventional work piece Micro-diameter probe for both curved surface and conventional measurement Micro-diameter probe to measure curved surface and small work piece Coarse diameter probe for measuring castings and thicker work pieces High temperature probe to measure high temperature work piece





Version Comparison

Version Measurement Mode Thru-paint measurement Measure Coatings
Basic P-E x x
Standard P-E, I-E, E-E √ x
Advanced P-E, I-E, E-E, E-C, C-E √ √

TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge 0
