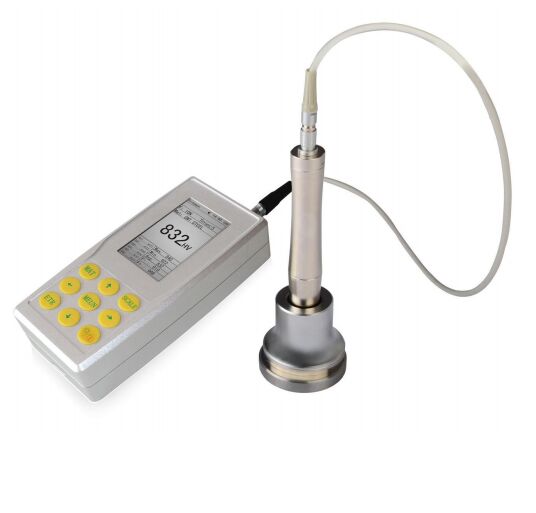

136° Vickers Diamond Indenter Ultrasonic Hardness Tester Motorized Probe
Features:
●Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.
● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
● Ultrasonic hardness tester HUH-5E applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester HUH-5E is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Manual Probes Features:
● Introduced latest ultrasonic sensor technology
● Obtain accurate hardness value without auxiliary devices
● Support 360° quick measuring
● Excellent human engineering design easy to hold
● Suitable dimension and weight of probe is convenient to control
● Quick and accurate measuring for edge and fixed position of specimen
● Micro indentation, Non- Destructive for specimen
Specifications:
| Product Name |
UCI Ultrasonic Hardness Tester |
| Model |
HUH-5E |
| Loading Force |
10N Motorized Probe |
| Indenter |
136°Vickers Diamond Indenter |
| Measuring Range |
HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6
HS: 34.2-97.3;Mpa: 255-2180N/mm
|
| Measuring Accuracy |
HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD; |
| Measuring Direction |
Support 360° |
| Data Storage |
To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale |
HV,HB,HRC, HLD |
| Data Display |
Loading force, Testing-times, Testing result, Average,
Maximum,Minimum,Deviation and Conversion scale. |
| Hardness Indication |
LCD display |
| Operating Environment |
Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
| Operating Voltage |
DC 6V |
| Instrument Dimensions |
160x80x31mm |
| Net Weight |
Approximate 500g(Without probe) |
Standard Delivery:
| Standard Delivery |
quantity |
Standard Delivery |
quantity |
Standard Delivery |
quantity |
Standard Delivery |
quantity |
| HUH-5E main unit |
1 |
Probe Cable |
1 |
Anti Vibration Case |
1 |
English Operation Manual |
1 |
| 10N Motorized Probe |
1 |
Com Cable |
1 |
Screw |
1 |
Warranty Card |
1 |
| Standard Rockwell Block |
1 |
USB Cable |
1 |
Qualification Certificate |
1 |
Packing List |
1 |
Manual Probe Specifications:
| Probe Type |
UCI-1K |
UCI-2K |
UCI-5K |
UCI-10K |
| Testing force |
10N |
20N |
50N |
98N |
| Diamter |
22mm |
22mm |
22mm |
22mm |
| Length |
154mm |
154mm |
154mm |
154mm |
| Oscillating Rod Diameter |
2.4mm |
2.4mm |
3mm |
3mm |
| Roughness of measuring surface |
Ra<3.2um |
Ra<5um |
Ra<10um |
Ra<15um |
| Min weight of test material |
0.3kg |
0.3kg |
0.3kg |
0.3kg |
| Minimum thickness |
2mm |
2mm |
2mm |
2mm |
Motorized Probe Specifications:
| Probe Type |
UCI-300 |
UCI-500 |
UCI-800 |
UCI-1000 |
| Testing force |
3N |
5N |
8N |
10N |
| Diamter |
46mm |
46mm |
46mm |
46mm |
| Length |
197.5mm |
197.5mm |
197.5mm |
197.5mm |
| Oscillating Rod Diameter |
3.7mm |
3.7mm |
3.7mm |
3.7mm |
| Min weight of test material |
0.3kg |
0.3kg |
0.3kg |
0.3kg |
| Minimum thickness |
2mm |
2mm |
2mm |
2mm |
Block Specification:
| Hardness Range |
Uniformity |
Roughness |
Dimension |
| (28~35)HRC |
±1.5HRC |
Ra=0.02um |
Ø90x16mm |
| (38~43)HRC |
±1.5HRC |
Ra=0.02um |
Ø90x16mm |
| (48~53)HRC |
±1.5HRC |
Ra=0.02um |
Ø90x16mm |
| (58~63)HRC |
±1.5HRC |
Ra=0.02um |
Ø90x16mm |
| (300~500)HV1 |
±3%HV |
Ra=0.02um |
Ø90x16mm |
| (300~500)HV5 |
±3%HV |
Ra=0.02um |
Ø90x16mm |
Support Ring Specifications:
| Support Ring Name |
Plan Support Ring |
Small Cylinder Support Ring |
Big Cylinder Support Ring |
| Application |
Plan Test Piece |
Diameter 8-22mm Test Piece |
Diameter 16-80mm Test Piece |
Guidelines for selection and use of UCI instruments:
| Load |
Model |
Features |
Typical Applications |
| 98N |
Standard length (manual) |
Relatively large indentation; requires minimal surface
preparation
|
Small forgings, cast material, weld inspection, HAZ |
| 50N |
Standard length (manual)
Extended length (manual)
Short probe (manual)
|
For general use
30 mm extended length
Reduced length (90 mm); electronics in separate housing
|
Induction hardened or carburized machine parts, for
example, camshafts, turbine weld inspection, HAZ
Measurement in grooves, on gear tooth flanks and roots
Turbine blades, inside wall of pipes with Ø >90 mm
|
| 10N |
Standard length (manual)
Extended length (manual)
Short probe (manual)
|
Load is easy to apply and provides control to test on sharp radii
30 mm extended length
Reduced length (90 mm); electronics in separate housing
|
Ion-nitride stamping dies and molds, forms, presses,
thin walled parts
Bearings, tooth flanks
Turbine blades, inside wall of pipes with Ø >90 mm
|
| 8 N |
Motor probe style |
Load is applied by servomotor |
Finished precision parts, gears, bearing raceways |
| 3 N |
Motor probe style |
Load is applied by servomotor; rather small indentations |
Thin layers, for example, copper or chromium on steel
cylinders;
Copper rotogravure cylinders;
Coatings, case hardened parts
|
| 1 N |
Motor probe style |
Load is applied by servomotor; rather small indentations |
Thin layers and coatings |
Testing Stand HU-100:
| Testing Stand |
HU-100 |
| Material |
Stainless Steel |
| Weight |
8.8Kg |
| Dimension(LxWxH) |
200 x 200 x 332mm |
