HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System

HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System
HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System

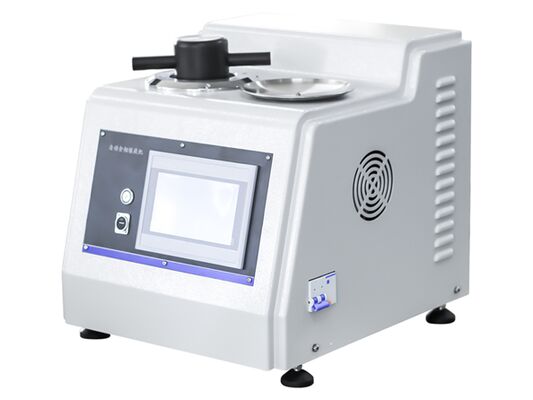

Grote Afbeelding :  HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System

Productdetails:
Plaats van herkomst: China
Merknaam: HUATEC
Certificering: CE
Modelnummer: HM-M2000W
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 st
Prijs: USD2587/set - USD2925/set
Verpakking Details: Kartonnen verpakking
Levertijd: 7-10 werkdagen na ontvangst van uw betaling
Betalingscondities: T/T, Paypal
Levering vermogen: 10sets/maand
Contact

HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System

beschrijving
De vormdiameter: φ30mm (optioneel φ22mm, 45mm) Verwarming vermogen: 560 W
Temperatuurbereik: 0 ~ 200℃ instelbaar Tijdbereik: 0 ~ 30 min
Drukmodus: Automatisch (motorbelasting) Koelende manier: Waterkoeling (optionele koelmachine)
Bediening en weergavemodus: Aanraakscherm
Markeren:

motorized sample mounting press

,

automatic mounting press with pressure control

,

fast heating cooling mounting press

HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System


1.       Product features

l  Man-machine interface and PLC control, the system is stable and reliable.

l  Adopts motor closed loop control to pressure the inlaid material, the pressure is stable and reliable, and the noise is low.

l  Efficient heating/cooling system maximizes heat transfer and cooling for fast circulation.Preheating function to maintain constant standby temperature, reduce heating time, shorten sample preparation time.

l  Touch screen display operation interface, simple operation, convenient and intuitive parameter setting.

l  Built-in storage 99 sets of Mosaic technology (save Mosaic materials and other parameters), you can call one of the process to meet specific requirements.

l  One-click start to complete the sample preparation process automatically.

l  USB interface, inlay process parameters through U disk import and export.


2.   Technical parameters

Item

specifications

The mold diameter

φ30mm (optional φ22mm, 45mm)

Heater Power

560 w

Temperature range

0 ~ 200℃ adjustable

Time range

0 ~ 30 min

Pressure mode

Automatic (motor loading)

Cooling way

Water cooling (optional chiller)

Operation and display mode

Touch screen

Mounting application

Editable mounting process library, can store 99 sets of mounting process

Program input/output

U disk

Working mode

Automatic and manual can be switched

Total power:

1000W

Power supply

AC220V 50HZ

Overall dimensions

530 * 430 * 410 mm

Weight

66Kg



3.       Standard accessories

Item

Quantity

Item

Quantity

Mounting press (HM1 black)

1 bottle (500 g)

Throat hoop (13-19)

1

Inlet pipe

1

Teflon tape

Volume 1

Outlet pipe

1

Spoon

1

Funnel 1.5 cm

1





Product specification

1

Product certificate

1



4.       Optional accessories

1.         Chiller: The equipment can be cooled automatically without external water source

2.         Material:

HM1

suitable for ordinary sample making

Material: phenolic resin

Color: black, red, green

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM2

suitable for conducting samples, such as electron microscope, electropolishing

Material: phenolic resin

Color: Black

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM3

suitable for samples with high edge requirements: very low shrinkage, tight sample bonding, high hardness, good wear resistance

Material: phenolic resin

Color: Black

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM4

suitable for powder metallurgy and other interstitial samples

Material: phenolic resin

Color: Red

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM5

suitable for samples with requirements on location, size, depth of layer, etc

Material: Acrylic resin

Color: Transparent

Packing: 500 g / 3 kg / 10 kg

HM6

suitable for ordinary sample making

Material:

Color: White

Packing: 500 g / 4 kg / 15 kg

HM7

suitable for samples that need to be recovered and the location, size and depth of layer are required

Material: Acrylic resin

Color: Soluble and transparent

Packing: 500 g / 3 kg / 10 kg

CLIP3

The sample holder is suitable for vertical elevation of the sample to observe the profile

Material: stainless steel

Packing: 100 PCS/box

MMR

Mold release agent is suitable for sample mold release

Packaging: 420ml/ bottle

MMR2

Mold release agent is suitable for sample mold release

Packaging: 420ml/ bottle

200 ml/bottle packaging

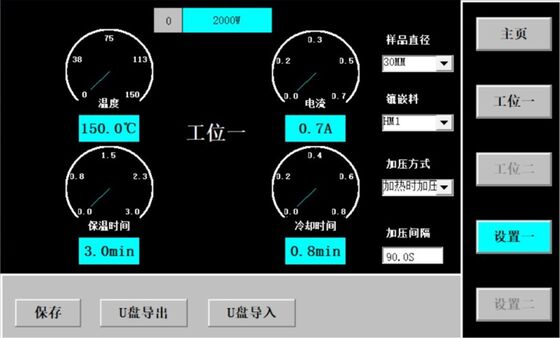

 5.Touch screen interface
