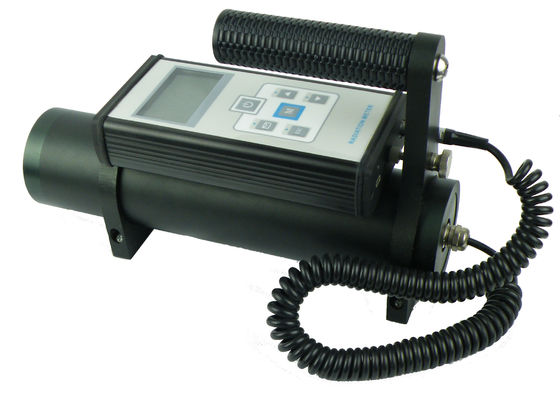

FJ6101-N50 High Sensitivity X Gamma Radiation Monitor 2inch NaI Crystal Detector With WiFi Bluetooth
Functional features
The detector adopts NaI scintillating crystal with large size, high sensitivity and fast response
The measurement time is optional, from 1 to 600 seconds as needed
Adopt international unified unit nGy/h (environmental class) and nSv/h(protection class)
Large size dot matrix LCD display with backlight function,
Large capacity lithium battery with charge and discharge protection function
Real-time display of battery power, low voltage alarm function
Touch buttons
Dose-rate alarm function with double alarm threshold
Detector fault alarm function
Real-time clock display
Overload alarm function
Can store 8000 datas
The mainbody is made of aluminum-magnesium alloy,very strong
The probe is equipped with an anti-slip handle and the main engine is fixed on the probe.
Host and probe are connected by inlet connector
With programmable sound, flash and vibration alarm
Optional bluetooth, wifi data transmission
Optional bluetooth printer
Technical parameters
| Detector |
2"x2" 'in NaI crystal |
| Measuring range |
10nGy/h ~ 100mGy/h |
| Energy threshold |
35Kev
|
| Sensitivity |
1 Gy/h≥1250cps
|
| Energy response |
40Kev ~ 3Mev≤±30% (relative to 137Cs)
|
| Relative basic error |
≤±8%,It has the function of dose-rate threshold alarm and detector fault alarm
|
| Repeatability |
≤±5%
|
| Readings show |
clock /h, nGy/h, nSv/h, clock /h, CPS
|
| Ambient temperature |
-10℃ ~ +45℃
|
| Relative humidity |
90% (+40℃)
|
| Weight |
1.8 Kg
|
It fully meets the lower limit of sensitivity measurement and range requirements of - radiation air release kinetic energy (absorbed dose) rate instrument for environmental monitoring JJG521-2006.
Configuration list
Instrument (host + probe),
connecting cable,
specification,
qualification certificate,
warranty card,
verification certificate (optional)Charger,
backup power supply,
portable case
