Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed
Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed
Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Grote Afbeelding :  Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

Productdetails:
Plaats van herkomst: China
Merknaam: HUATEC
Modelnummer: HMTD
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 STKS
Contact

Mobile Drill Pipe Magnetic Flux Leakage Detection Equipment HMTD with Compact Structure and Fast Detection Speed

beschrijving
Detectiemethode: Magnetische fluxlekkage (MFL)
Markeren:

mobile drill pipe MFL detector

,

compact magnetic flux leakage equipment

,

fast detection speed NDT tool

Mobile Drill Pipe Magnetic Flux Leakage Detection System - HMTD
System Overview

The HMTD mobile drill pipe magnetic flux leakage detection system provides advanced non-destructive testing capabilities for drill pipe inspection. This innovative equipment addresses critical safety concerns in drilling operations by identifying defects that could lead to catastrophic failures.

Compact Design
Lightweight and easily transportable for field use
Minimal Blind Areas
Advanced detection with reduced inspection gaps
Rapid Deployment
Quick setup and standardized inspection process
Versatile Application
Suitable for both factory and field environments
Detection Principle

The system utilizes Magnetic Flux Leakage (MFL) technology, recognized as the most reliable method for inspecting ferromagnetic tubular materials. This approach offers superior detection speed, effectiveness, and operational simplicity.

Working Principle: When ferromagnetic materials like drill pipes are magnetized, magnetic flux distributes evenly through defect-free sections. However, at defect locations (cracks, holes, wear), the magnetic permeability changes significantly, causing magnetic flux to leak from the surface. Sensitive magnetic components detect these field distortions to identify and characterize defects.

System Components

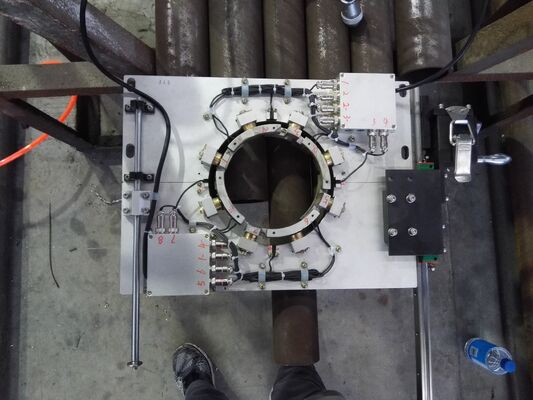

Mobile Detection Probe
  • Magnetizer: Generates parallel magnetic fields for pipe magnetization
  • Crawling Device: DC reduction motors with rollers for automated movement
  • Flaw Detection Sensor: Customizable probe groups for different pipe diameters
  • Signal Preprocessor: Amplifies and filters detection signals
Mobile Console & Computer System

The mobile console integrates electrical control systems, excitation power supply, motor drive power, and voltage stabilization components. The computer signal processing system analyzes detection data and generates comprehensive test reports.

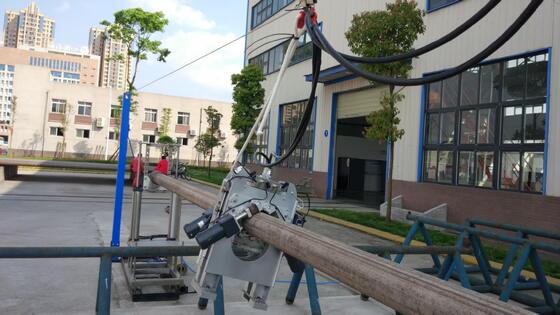

Inspection Process
Step 1: Position drill pipe in inspection area and deploy inspection trolley
Step 2: Hydraulic lifting mechanism raises drill pipe for probe scanning
Step 3: Automated probe crawling completes full surface inspection
Step 4: Lower drill pipe and retract probe to trolley platform
Step 5: Remove inspected pipe and prepare for next inspection
Key Benefits
  • Eliminates large detection blind areas common in conventional equipment
  • Compact size eliminates need for specialized workshop facilities
  • Combines speed of fixed equipment with mobility of portable systems
  • Reduces labor intensity through automated inspection process
  • Cost-effective solution for comprehensive drill pipe quality monitoring
